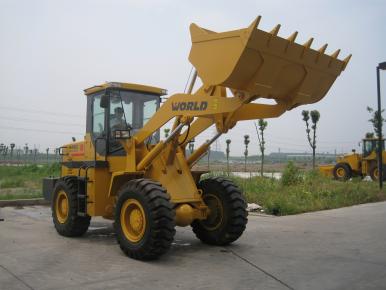

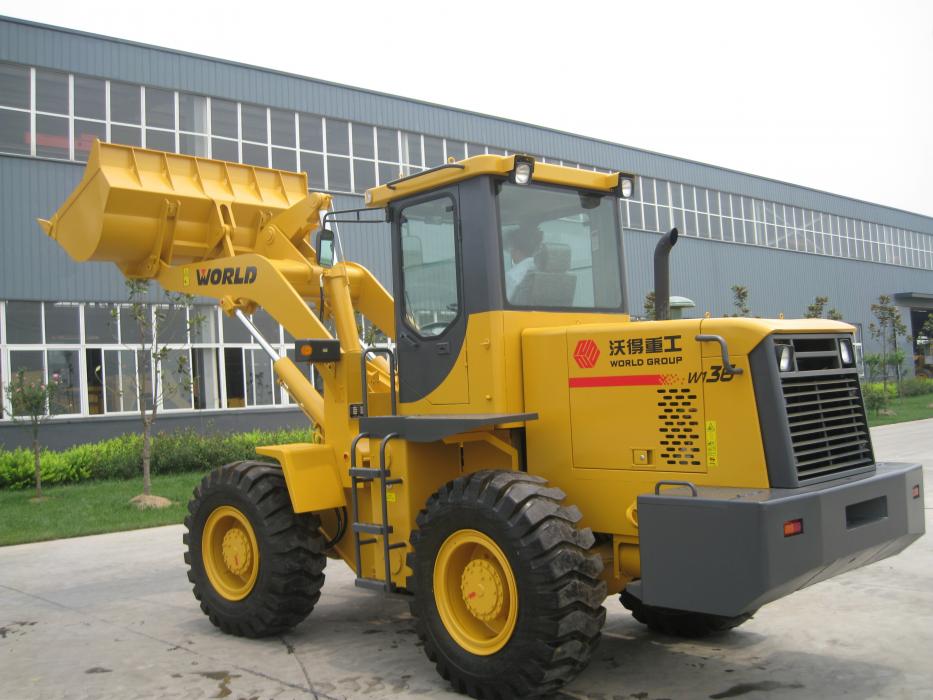

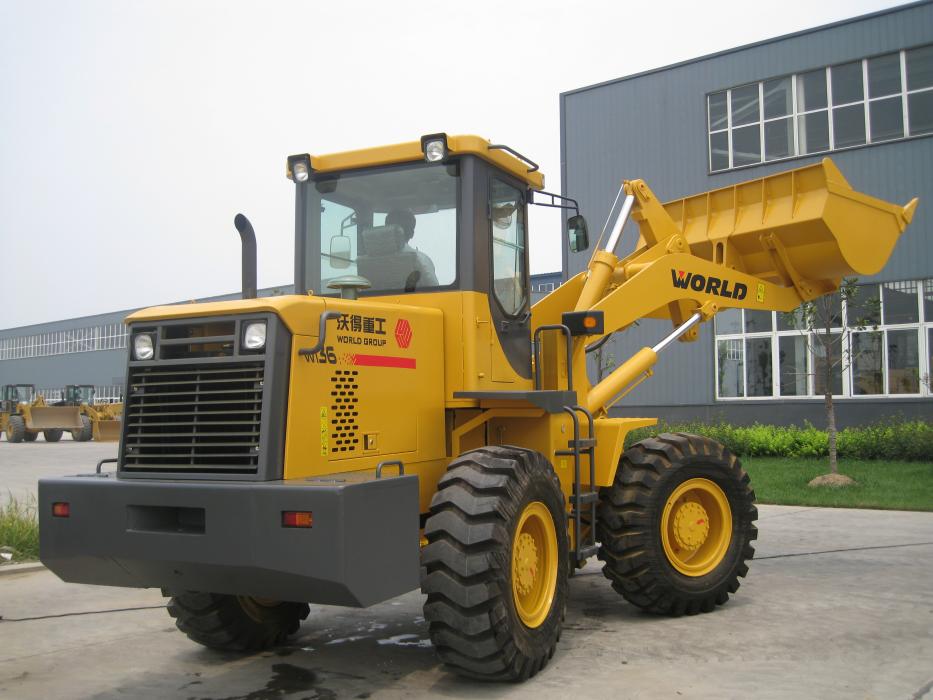

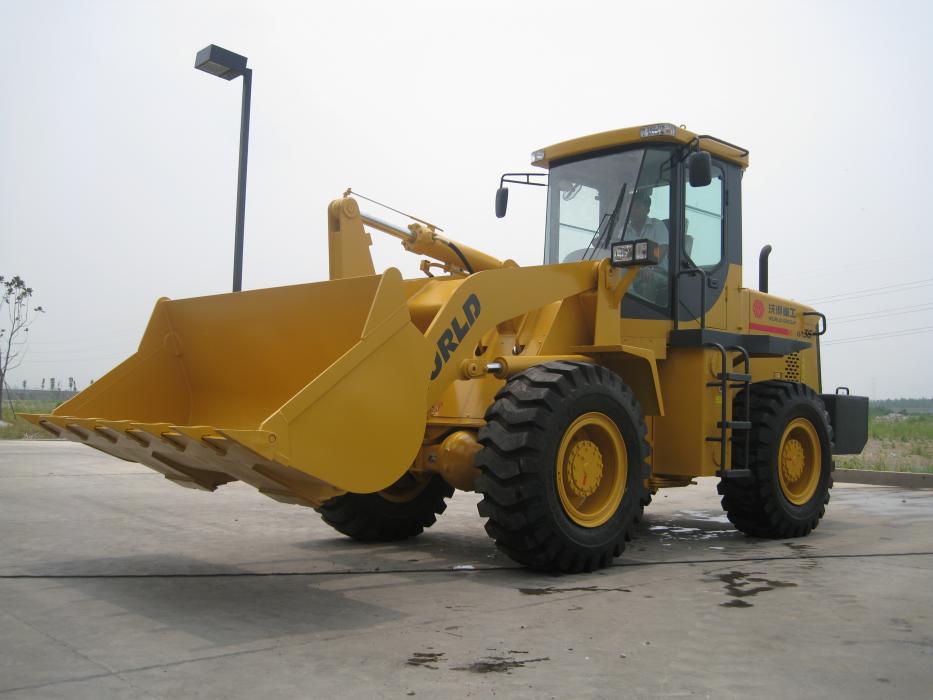

Name:3 Ton Wheel Loader with 2 Cbm Bucket
Bucket Capacity:2CBM
Engine:CUMMINS/Duetz
Power:97kw
Max. dump height:3060mm
Max. dump reach:1058mm
Dimensions (LxWxH):6970x2245x3286mm
Min. Clearance Over Ground:380mm
Operating Weight:10000kg

Products Description

1、The engine power is 92kW; the breakout force exceeds 100KN; arm cylinder breakout force is 76.7kN; lifting capability reaches 95.8kN; traction force exceeds 97kN; dump height to bucket tip is 2950, to bucket edge is 3060.

2、The bucket capacity is from 1.8CBM to 2.2CBM.

3、Stability is improved due to enlarged wheelbase from 2600mm to 2750mm and more reasonable axle load distribution.

4W136 loader standard equips with 97 kw Cummins 6BT5.9-C130 engine and ZL30 planet type gearbox. Weichai Deutz engine is optional.



Items\Model

 W136
Basic ParametersStandard bucket capacity2
Rated loadkg3200
Operating weightkg10000
Max. tractionKN100
Max. breakout forceKN100
Travel SpeedForward gear Ikm/h0-10.8
Forward gear IIkm/h0-32.5
Forward gear IIIkm/h
Forward gear IVkm/h
Reverse gear Ikm/h0-14.5
Reverse gear IIkm/h
DimensionsLength (bucket on ground)mm6950
Heightmm3228
Widthmm2245
Max. dump heightmm3060
Max. dump reachmm1020
Min. turning radius (outside of bucket)mm6005
Wheel basemm2750
EngineModel
CUMMINS
Type
Turbocharging
Rated powerkW97
Rated revsr/min2200
Total displacementL6.754
Max. torqueN.m500
Drive systemTorque converter
Single stage, 2-phase, 4 elements
Transmission
Planetary type
Drive axle
2-stage reduction
Steering systemType
Full hydraulic
Working deviceWork cycle times10.3
Volume Fuel tankL170
Hydraulic oil tankL170
